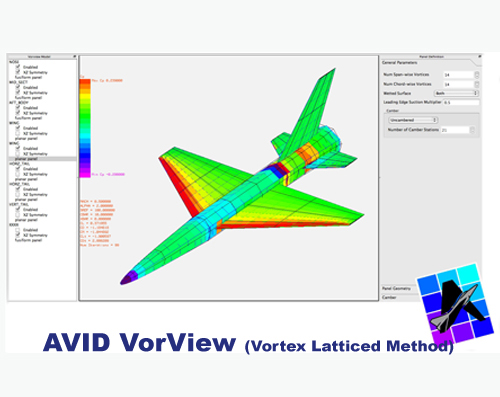

AVID VorView

sub AVID VorView는 아음속 및 초음속 공력분석 도구로 형상을 성능, 트림, 안정성, 제어 등으로 변환을 지원하여 항공기 또는 항공기 설계의 공기역학적 특성을 평가하는 데 사용됩니다. 비행체 설계의 기하학적 구조에 기반하여 AVID VorView는 사용자에게 특정 항공기의 자세와 속도에 기반한 공기역학적 성능 정보를 제공합니다.

AVID PAGE로부터 입력 데이터를 제공 받는 AVID VorView는 공기역학적 성능 예측 도구입니다. 이 결과는 AVID RAPT에서 반복 설계 최적화를 위해 사용됩니다.

VorView은 다음과 같은 기능을 가지고 있습니다.

▶   Automatic vortex lattice generation from parametric geometry
▶   User control of vortex panel density and spacing
▶   User control of leading-edge suction and camber line definition
▶   Capable of analyzing a wide range of speeds (Mach 0.0 - 3.0), orientations and angular rates
▶   Capable of analyzing round or sharp leading edges, including leading edge vortex configurations
▶   Visualization of panel pressure distributions
▶   Visual, intuitive user interface

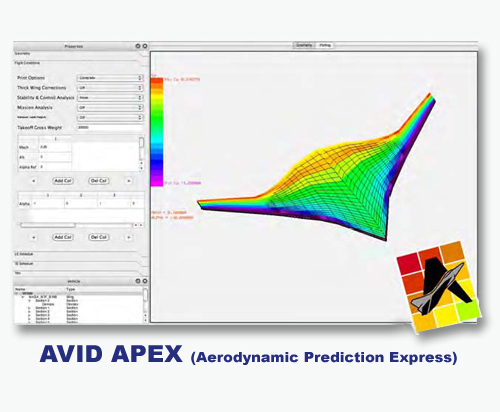

AVID APEX

sub AVID APEX는 전체 항공기 구성을 분석하도록 설계된 포괄적인 중정밀 공기 역학적 분석 도구입니다. AVID APEX는 임의의 AOA 및 측면 슬립 조건을 가진 아음속, 천음속 및 초음속 비행 체제의 복잡한 형상을 분석 할 수 있습니다.

이 도구의 기초는 강력한 vortex-lattice 분석이지만 2차원 airfoil 분석, 유동, 표면 상호 작용 보정 및 간결한 항력 형성 방법(concise drag build-up methodology)이 추가되었습니다. 이 접근법은 오늘날 사용 가능한 vortex-lattice 솔버 중 비교할 수 없이 빠르고 정확한 성능 예측을 제공합니다.

AVID APEX는 다음과 같은 기능을 제공합니다.

▶   Direct geometry import from AVID PAGE and OpenVSP
▶   Intuitive Graphical User Interface (GUI) including results visualization
▶   Calculations support wings, slender body fuselages and engine pods
▶   Aircraft component-based drag build-up, including parasite and induced drag
▶   Full range of Mach numbers (subsonic, transonic and supersonic)
▶   Angle of attack sweeps
▶   Wide range of leading and trailing edge high lift devices
▶   Longitudinal static stability derivatives
▶   Spanwise load prediction

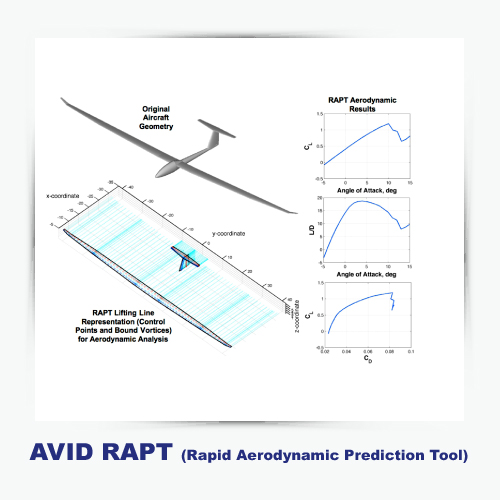

AVID RAPT

sub Avid PAGE, AVID VorView로부터의 입력데이터를 활용하여, AVID RAPT는 2차원 익형 정보와 기하학적 구조에 기반하여 3차원 날개 결합 공력특성 및 상호작용을 평가합니다. , AVID RAPT의 결과는 AVID VorView, AVID’s flagship air craft design tool, AVID ACS 등에서 반복적인 설계 과정을 통해 추후 프로토 타입 또는 생산 비용을 크게 절약할 수 있습니다.
